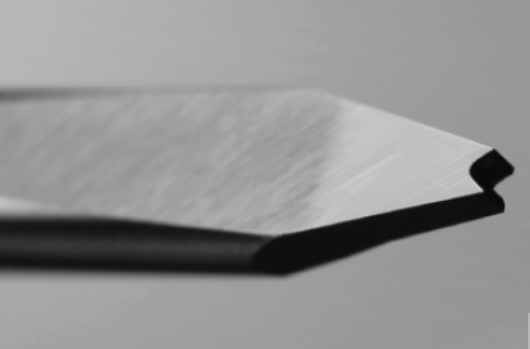

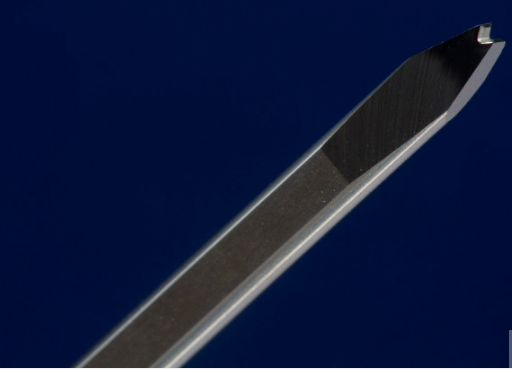

粗铝线焊接劈刀
常用型号4mil、6mil、8mil、10mil、12mil、20mil
| |||||
| OE型号 | 路径 [mils] | FL [0.Imils] | W [0.Imils] | GW [0.Imils] | GD [0.Imils] |
| 127153-5 | 5 | 147 | 110 | 57 | 34 |
| 127153-6 | 6 | 169 | 120 | 68 | 40 |
| 127153-7 | 7 | 199 | 140 | 80 | 48 |
| 127153-8 | 8 | 228 | 152 | 89 | 55 |
| 127153-10 | 10 | 284 | 190 | 122 | 75 |
| 127153-12 | 12 | 344 | 230 | 146 | 90 |
| 127153-14 | 14 | 396 | 270 | 171 | 105 |
| 127153-15 | 15 | 428 | 290 | 183 | 113 |
| 127153-16 | 16 | 440 | 320 | 195 | 118 |
| 127153-18 | 18 | 510 | 340 | 220 | 140 |
| 127153-20 | 20 | 566 | 440 | 244 | 150 |
| 劈刀型号及其尺寸 | |||||
| OE型号 | 路径 [mils] | FL [0.Imils] | W [0.Imils] | GW [0.Imils] | GD [0.Imils] |
| 127175-5 | 5 | 125 | 110 | 57 | 34 |
| 127175-6 | 6 | 145 | 120 | 68 | 40 |
| 127175-8 | 8 | 195 | 150 | 89 | 55 |
| 127175-10 | 10 | 244 | 190 | 122 | 75 |
| 127175-12 | 12 | 294 | 230 | 146 | 90 |
| 127175-15 | 15 | 360 | 290 | 183 | 113 |
| 127175-20 | 20 | 484 | 400 | 244 | 150 |
